25A double-knife ring type self-locking with lamp Featured Image
  • 25A double-knife ring type self-locking with lamp

25A double-knife ring type self-locking with lamp

Short Description:

·Product Model: Q25A.

·Type: Double Pole.

·Material: 304 stainless steel housing， PA66.

·Protection level: IP65,  IK10,  IP40.

·Electrical parameters: 5A  /250VAC.

·Contact resistance: ≤50Ω.

·Insulation resistance: ≥ 1000MΩ.

·Lamp bead life: 40,000 hours.

·Mechanical life: 30 times/min，500,000 times.

·LED voltage: 3V-220V.

·Service  temperature range: -20℃—55℃.




  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics

    1. Flame retardant material, safety guarantee
    2. Stainless steel shell anticorrosive and dustproof.
    3. Contains PC button, silicone waterproof ring
    4. High performance, solid and reliable.

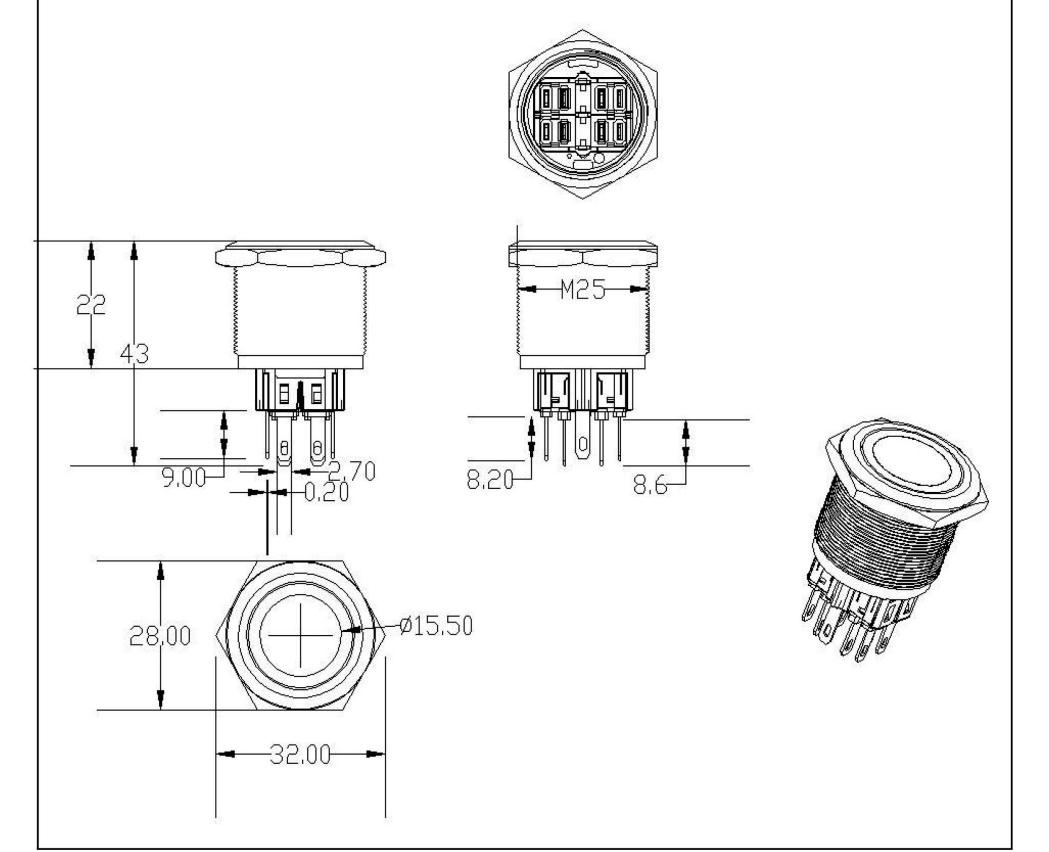

    Product Drawing

    sd
    d

    Application Areas

    The product can be used in:
    Transportation and safety equipment
    Household appliances, medical equipment
    Starter, bathroom, entrance guard, etc.

    Package picture

    sad
    asd
